Geotechnical Excavation Monitoring in Rochester, NY

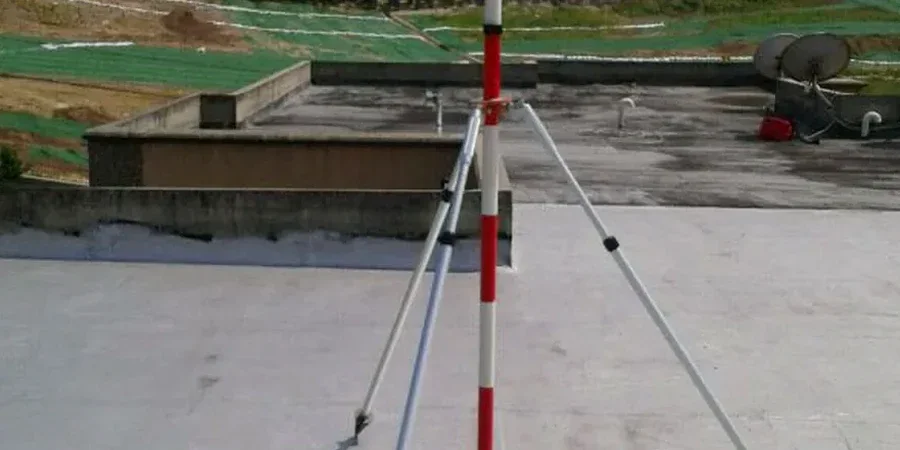

The 2020 New York State Building Code, incorporating IBC 2021 and ASCE 7-22, mandates rigorous geotechnical instrumentation for any deep cut in Rochester’s glacially disturbed overburden. With a metropolitan population nearing 210,000 and a downtown experiencing steady vertical redevelopment, contractors face a subsurface dominated by dense glacial till overlying weathered Lockport Dolomite. The real challenge isn’t just reaching bedrock—it’s managing the perched groundwater pockets trapped in the upper sandy lenses. Our laboratory team deploys inclinometers, vibrating-wire piezometers, and automated total stations to track wall deflection and drawdown in real time, ensuring the shoring system performs within the deformation thresholds specified by the engineer of record. Integrating this data early with a CPT investigation refines the soil profile and eliminates the guesswork in selecting the right bracing stiffness.

In Rochester’s glacial till, the difference between a stable cut and a service-line rupture is often two inches of unread deflection data.

Our approach and scope

Downtown Rochester basements encounter stiff gray till at roughly 12 to 18 feet, while projects closer to the Irondequoit Valley often hit running sand lenses before reaching competent rock. This split personality of the local geology means a one-size-fits-all monitoring approach fails predictably. On the west bank of the Genesee, the till is leaner and more sensitive to vibration-induced settlement, demanding tighter crack-gauge arrays on older brick walk-ups. In the eastern wedge toward Brighton, the dolomite bedrock rises to within 8 feet of grade, which simplifies the shoring but introduces vibration concerns during mechanical rock excavation. By calibrating our baseline readings against the site-specific ground model, we can distinguish between normal thermal movement of a lagging board and a genuine wedge failure developing behind the wall. When the stratigraphy suggests a risk of bottom heave, we often recommend supplementing the monitoring plan with a deep excavation stability review to verify the factor of safety against basal uplift.

Local ground factors

A pattern we notice repeatedly in Rochester’s older neighborhoods is the delayed settlement of clay sewer laterals after dewatering begins. Many pre-1940 vitrified clay pipes were bedded directly in the upper weathered till, and even a modest five-foot drawdown outside the excavation perimeter can trigger differential settlement that cracks the pipe at the building connection. The repair cost dwarfs the monitoring bill. Another local reality is the freeze-thaw cycle: excavations left open from November through March along the Lake Ontario plain experience ice lensing in the exposed face, which loosens the bond between the till and the shotcrete lagging. Our team schedules baseline readings immediately after each significant thaw to catch any creep that developed over the winter, preventing the spring resumption of work from starting with an already compromised support system.

Technical data

Parameter	Typical value
Monitoring frequency	Continuous (15-min intervals) to daily manual readings
Typical inclinometer accuracy	±0.25 mm/m (vertical) per ASTM D6230
Piezometer range	0–100 psi vibrating-wire, resolution 0.025% FS
Crack gauge sensitivity	0.01 mm, weatherproof LVDT type
Seismic monitoring threshold	0.5 in/s PPV for pre-1900 masonry, per USBM guidelines
Reporting protocol	Daily summary + instant amber/red alert email

Associated technical services

Real-Time Excavation Instrumentation

We install and maintain in-place inclinometers, crack gauges on adjacent brownstones, and wireless piezometers that transmit pore-pressure readings every 15 minutes. Data is accessible through a secure dashboard, with SMS alerts when movements approach 80 percent of the allowable lateral deflection.

Pre-Construction Condition Surveys & Vibration Monitoring

Before the first bucket breaks ground, we document existing conditions of neighboring structures within the zone of influence. During rock removal or hoe-ramming, we set up triaxial geophones to keep peak particle velocity within the limits recommended by the USBM RI 8507 for historic masonry common in the Park Avenue area.

Questions and answers

How often do you read the monitoring instruments during active excavation?

Vibrating-wire sensors and in-place inclinometers are polled every 15 minutes automatically. A licensed engineer reviews the 24-hour trend each morning, and we perform a manual survey with a digital inclinometer probe at least twice per week during heavy earthmoving or when the readings approach the agreed notification threshold.

What is the cost range for a typical excavation monitoring program in Rochester?

Most mid-block commercial excavations in the city run between US$720 and US$2,680 per month, depending on the number of inclinometer casings, piezometer strings, and the required reporting frequency. A fixed quotation is always provided after we review the shoring drawings and the geotechnical baseline report.

Do you install the sensors or only read them?

We handle the complete installation: grouting the inclinometer casing into a predrilled borehole, placing piezometers in sand-packed zones, and mounting crack gauges with epoxy anchors. The same crew that installs the gear performs the initial zero readings, so there is no gap between installation and commissioning.

How do you protect instruments during Rochester winters?

Surface monuments are set below the frost line—typically 42 inches in Monroe County—and cables are routed through rigid conduit to a heated NEMA 4X enclosure. Piezometers are backfilled with a bentonite seal to prevent freeze damage, and we schedule a thaw-recovery reading every February to verify zero drift.

What happens if an alarm threshold is exceeded?

The system sends an automated SMS and email to the project manager, the shoring designer, and our on-call engineer within 60 seconds. We then mobilize a technician to verify the reading manually and, if confirmed, assist the contractor in implementing the contingency plan—typically a temporary berm or additional tieback load test.
